Glass Hands
Brief information

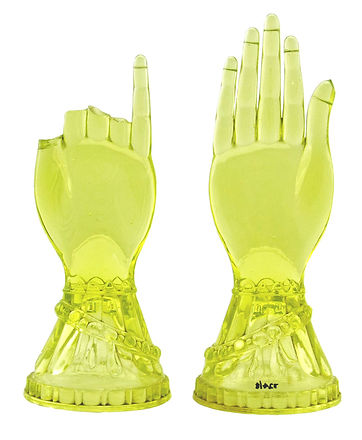

An uranium yellow glass hands produced by the W.H,B & J Richardson Company. According to its Registration Diamond on the palm of both hands, the glass was registrated on the 11th May, 1872.
Treatment Goal
-
Cleaning: mechanical removing the old adhesive with a bit acetone. Cleaning the glass with deionised water
-
Fingers were broken and detached from the left hand: treatment included adhesion of the detached fingers
-
Left thumb is missing: treament would create a clear replacement thumb
Making a Thumb Cast - Make Mould
Considered the right thumb is hard to access and it is flipped to the left. We decided to make a new mould for casting.
-
It firstly made an epoxy putty thumb: shape it into thumb shape in-situ
-
Refined and retouched the thumb with flugger
-
Moulded it: Make a mould box with silicone rubber
-
making a two-halved mould: imitating the joint in between the hands
Making a Thumb Cast - Cast a new thumb
-
Hxtal thumb: clear, similar refractive index to glass and insoluable to solvents
-
Casted the mould with Hxtal-NY1 (3-part resin: 1 part hardener): set for 7 days
-
Then polish it with abrasive cloth (from 4000 grade to 8000 grade, and to 12000 grade)
-
The final hxtal thumb is clear but pick up some yellow colour from the hand body at the same time.
Adhering the broken fingers
-
Sticked the distached fingers back with Hxtal-NY1. It has strong bonding and simliar refractive index to glass. Yellowing with age is not a problem as the hands are yellow.
-
Used tape to secure a correct joint and set it for a few days.

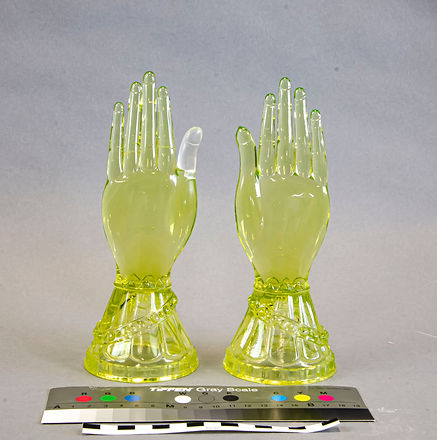

Adhering the clear replacement thumb
-
Polish the cast with micromesh cloths
-
Stick the replacement thumb with Paraloid B-72. Paraloid B-72 is a reversible adhesive. It enables future replacement.
-
Then, set for 7 days.
